Build Volume(WxDxH) |
256 x 256 x 256 mm³ |
Shell |

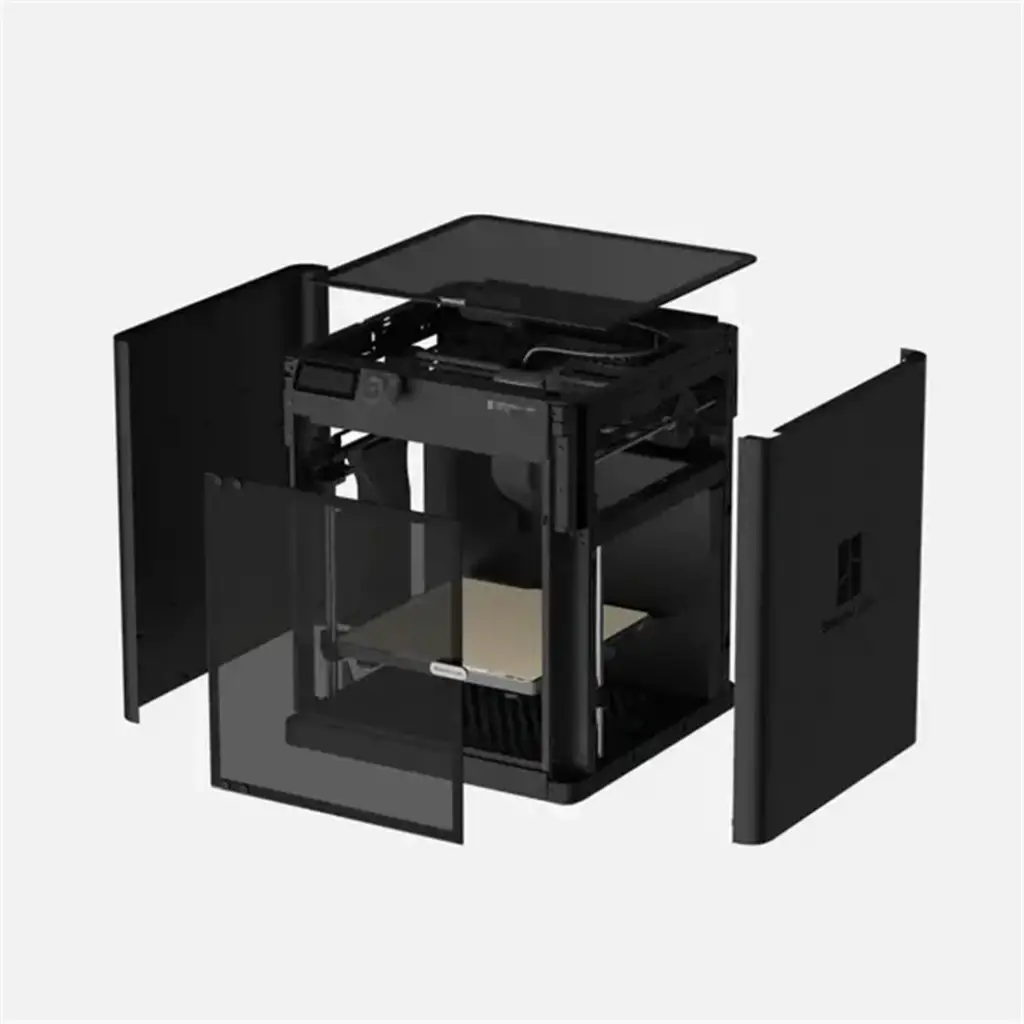

Open frame (Printable Modplates Available) |
Enclosed (Plastic & Glass) |
Hot End |
All-Metal |
Nozzle |
Stainless Steel |
Max Hot End Temperature |
300 ? |
Nozzle Diameter |
0.4 mm (Included)
0.2 mm, 0.6 mm, 0.8 mm (Optional)
|

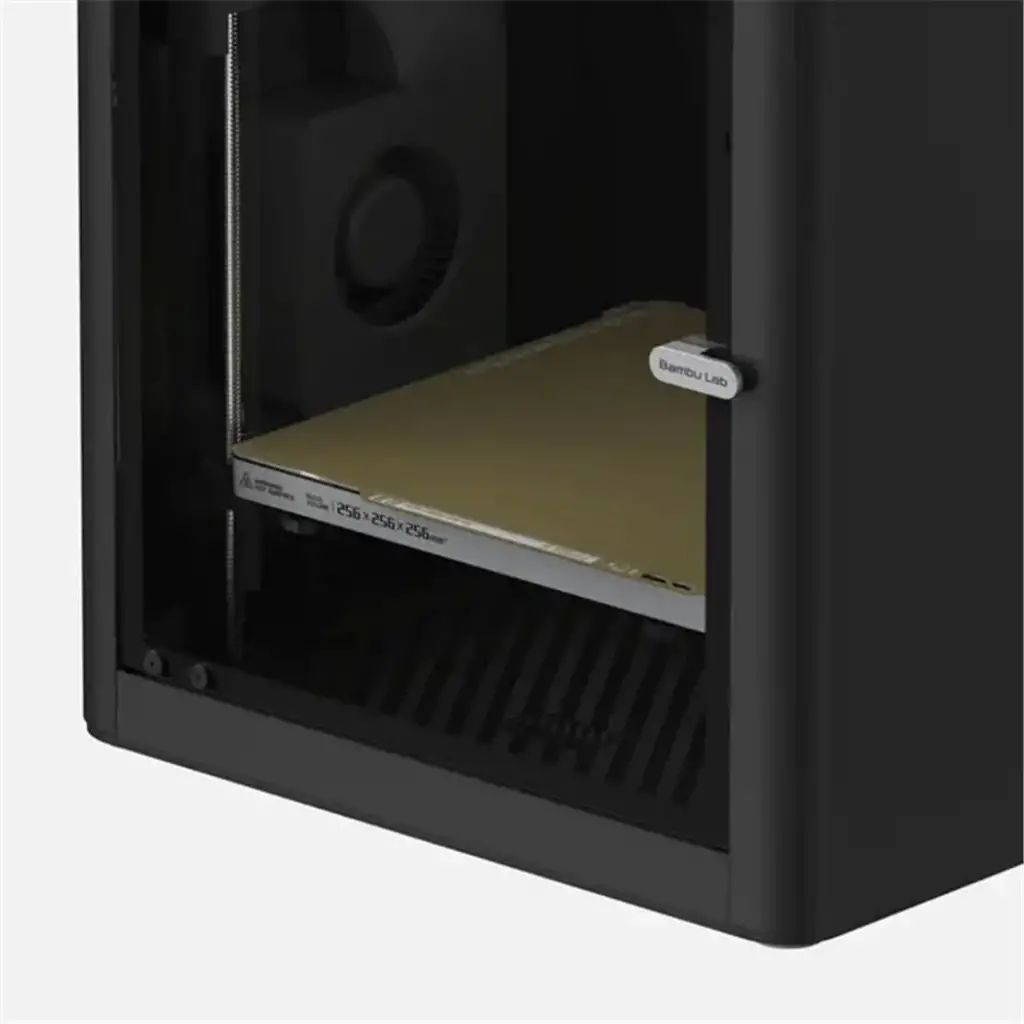

Build Plate Surface Compatibility |
Bambu Textured PEI Plate, Bambu Cool Plate,
Bambu Engineering Plate, Bambu High Temperature Plate
|
Max Build Plate Temperature |
100? |
Max Speed of Tool Head |
500 mm/s |
Max Acceleration of Tool Head |
20 m/s² |
Control Board Fan |
Optional |
Closed Loop Control |
Chamber Temperature Regulator Fan |
Optional |
Closed Loop Control |
Auxiliary Part Cooling Fan |
Optional |
Closed Loop Control |
Air Filter |
Optional |
Activated Carbon Filter |
Supported Filament |
Ideal: PLA, PETG, TPU, PVA, PET
Capable: PA, PC, ABS, ASA
|
Ideal: PLA, PETG, TPU, PVA, PET, ABS, ASA
Capable: PA, PC
|
Chamber Monitoring Camera |
Low Rate Camera 1280 x 720/0.5fps
Timelapse Supported
|
Filament Run Out Sensor |
Yes |
Physical Dimensions |
P1P:386 * 389 * 458 mm³,
Package size 485 × 480 × 528 mm³,
Net weight 9.65kg, Gross weight 14.30 kg
|
P1S:389 * 389 * 458 mm³,
Package size 485 × 480 × 530 mm³,
Net weight 12.95kg, Gross weight 17.60 kg
P1S Combo:Package size 485 × 480 × 585 mm³,
Gross weight (AMS included) 21.60 kg
|
Electrical Requirements |
100-240 VAC, 50/60 Hz, 1000 W @220 V, 350W@110V |
